MANUAL PLUG-IN CABLES
Manual Plug-in Cables

Manual Plug-in Roof Heat Cables

Decorative icon
Is your home an ice dam magnet? For some homeowners, roof heat cables are the best option to keep their roof ice-free this winter and prevent any further damage caused by water constantly freezing, melting, then refreezing. A heated roof or gutter cable is designed to slowly melt the ice and snow on your roof in order to eliminate the dangers posed by ice dams.

Cables feature a manual plug-in connection; the heat cable is switched manually, requiring supervision to ensure it’s done correctly and works properly.

Dual user attachable configuration for OEM connection of cable. Units are dual voltage rated. Operation and trip times equal or exceed that of the GFCIs.

Our professionals can help you choose the proper roof heat cables for your home.

DS-223 Specifications

Volts/Amps
120V/20A and 240V/20A

Accepts
12 - 18 AWG. (SJT)

Trip Level
30 mA

Voltage Surge Withstand
3kv ring wave test and 4kv/2kA surge immunity test

Frequency
50 / 60 Hz

Endurance
5000 operations minimum

Overload Current
Six times rated current

Operating Temperature Range
10°C to 60°C

Insulation Voltage
1500 VRMS - 1 Min.

Power On Indication
Lighted indicator
Ordering Information

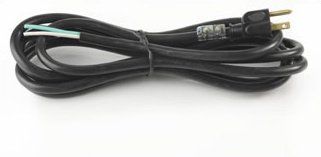

10 Foot Pig-Tail Power Cord w/ Molded Plug
Product code: EPT-10

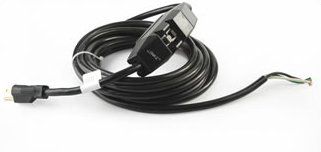

20 AMP 30mA GFCI Plug Kit
120 VAC code: EGFI-120
240 VAC code: EGFI-240
