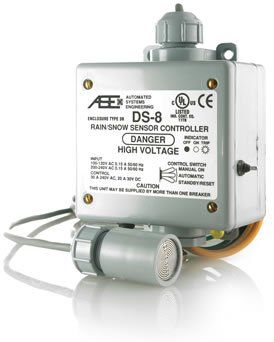

DS-8 Rain/Snow Sensor Controller

The unit is housed in a two-gang PVC enclosure. The overall dimensions of the DS-8 are 4¾” (120) x 7″ (178) x 2¾” (70). The unit weighs 2 pounds. The user may access all electronics by removing the four front cover screws.

Wiring is performed by terminating your existing wiring to the pre-installed pigtails (see below.) The DS-8 is mounted by either attaching the mounting hub to a rigid ½” or ¾” conduit or by installing screws through the four mounting tabs provided.

The DS-8 can be powered from either a 100-120 VAC or 200-240 VAC 50/60Hz source. Peak power consumption is 15 watts. Voltage selection is performed by installing provided jumpers onto the printed circuit board. The unit provides a single 240 VAC @ 30A normally open load contact set. Operational temperature range is -40°F to +185°F (-40°C to +85°C).

An environmentally-sealed control switch is provided. The “Manual On” function activates the controlled equipment for testing and special operational conditions. The “Automatic” position allows the DS-8 to handle all detections and control. The “Standby/Reset” position disables triggering and can also be used to clear the delay off timer (see below) from true or test activation. If the switch is placed in “Manual On” for less than 2 seconds, then switched back to “Automatic” the controller will execute one delay off cycle. The delay off cycle is determined by the DEL adjustment with a range of 30-90 minutes. This can be used to clear surfaces with frost or hail buildup, without the danger of leaving the system in a continuous “Manual On” condition. “Standby/Reset” can still be used to clear this delay off cycle. Remote control and monitor up to 1000 feet away is also available when the optional C/M cable listed is installed. The DS-8 is also compatible with the DP-7B, DP-7EX, and CDP-2 remote control/status panels.

“Delay Off” refers to the internal drying cycle timer of the DS-8. The timer is used to allow the DS-8 to dry the heated surface through evaporation once precipitation has stopped. The drying cycle reduces the chance that moisture left behind by the melting process will refreeze. This timer is restarted by each precipitation detection. Therefore, the DS-8 will continue to operate as long as precipitation and trigger temperature is detected, then for the “Delay Off” time once rain or snow stops. The Delay Off time can be adjusted from 30-90 minutes. Proper adjustment assures drying without excessive runtime.

Trigger Temperature is adjustable from -40°F to +185°F (-40°C to +85°C) using an on-board control. When ambient air temperature is below this trigger point, precipitation is assumed to be snow or freezing rain. The DS-8 can be configured to detect snow only by leaving the thermal probe connected to J2. Removing the thermal probe connection allows the unit to trigger on either rain or snow detection.

The DS-8 also has an external LED indicator, providing a method to check proper power and trigger status when the unit is mounted in a hard-to-reach location. Steady OFF indicates no power to the unit. Steady ON indicates power but no trigger. A blinking LED indicates the DS-8 is triggered and deicing is taking place.

All sensor and communications wiring is NEC Class 2. This simplifies installation while enhancing fire and shock safety. The APS-3C can interface up to six sensors from the CIT-1 product family. Using more sensors provides superior performance by better matching the controller to site performance requirements.

• Automatic Activation means Lower Deicing Costs

• Reliable Rain and Snow Detection

• Full 30A @ 240 VAC Control

• Field Strap for 100-120/200-240 VAC Operation

• Replaceable Remote Precipitation Sensor

• Easy Installation, Full Access to Electronics

• Safe Low-Voltage Sensor Head

• Adjustable Temperature Trigger Point

• Adjustable Delay Off Cycle

• Bright Off/On/Triggered LED Status Indicator

• Smart “Manual On” Operates for One Delay Cycle

4¾” (120) x 7″ (178) x 2¾” (70)

2 Lbs. (0.9 Kg)

-40°F to +185°F (-40°C to +85°C)

NEMA 3R

100-120 VAC/200-240 VAC Field Selectable 15W maximum

34°F-44°F (1.1°C-6.6°C) Field Selectable

30-90 Minutes Field Selectable

30A @ 240 VAC/100,000 operations minimum at full load

4212-ASE

The DS-8 Rain/Snow Sensor Controller
