Variety of Sizes

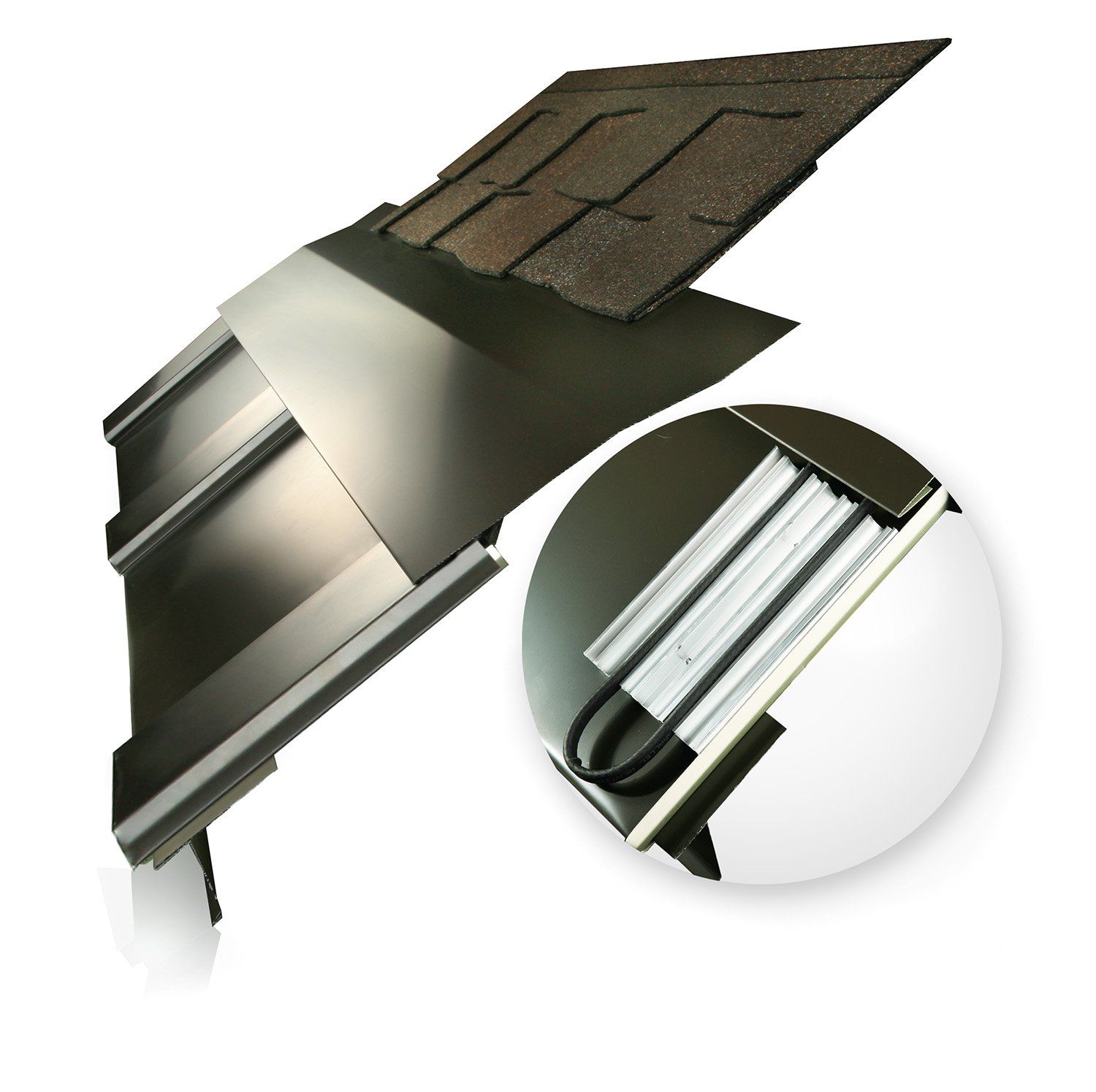

The aluminum alloy panel surrounds the available heat source; the top, bottom and sides are in direct contact with the heat source at all times. This is the most efficient use of energy and offers the best results available.

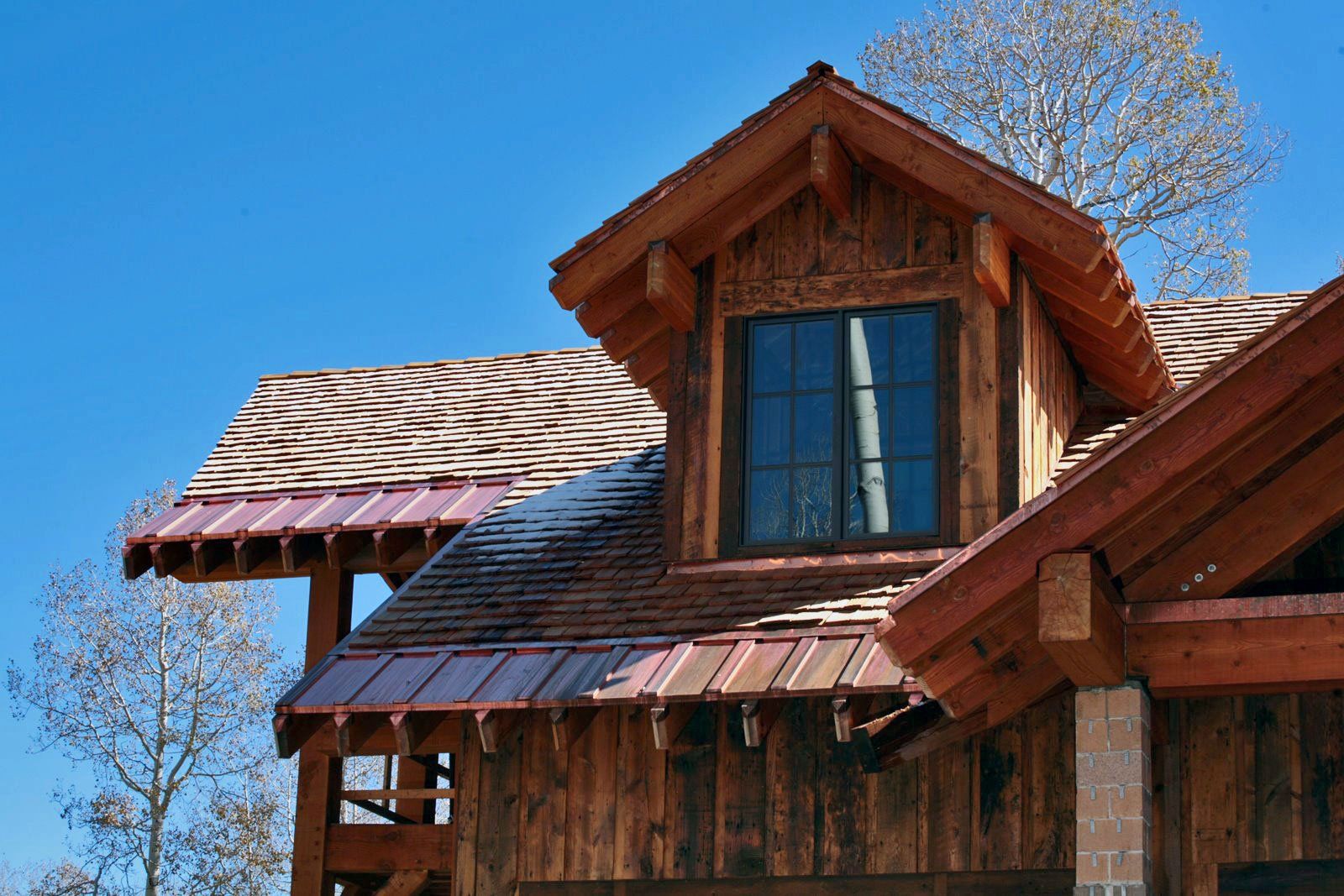

This system is an excellent choice for homes that are located in higher elevations, with eaves over 24″, or for those that prefer the attractive look of the IceFree Zone Panels. Each panel comes in a variety of colors as well as copper, aluminum and now CoreTen for a rustic metal look.

Title
Button
Title
Button
Title
Button

Title
Button

SPECIFICATIONS

ICEFREE ZONE INSTALLATION GUIDE

Material Selection

Una-Clad Kynar 500 Painted Aluminum, 20 oz. Copper, CoreTen and other specialty options are available.

Color

Decorative Metal Cladding

Panel Size

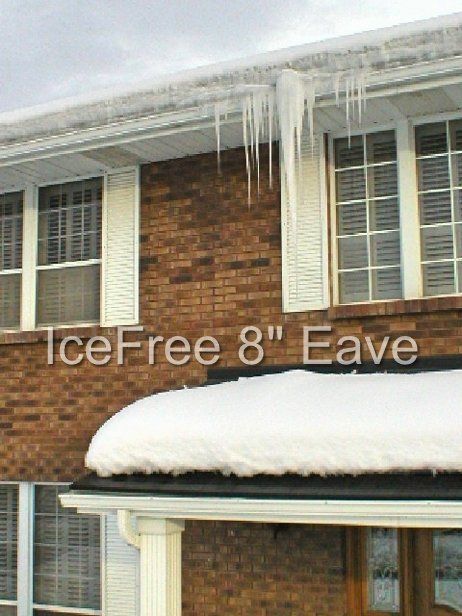

Panels come in standard 24″, 36″, 48″ or 60”; Expertly designed to eliminate icicles, snow load, and ice dams on roof eaves of any size.

Heating Systems

Commercial Grade-Self Regulating Heat Cable (min. 5 Watt per foot in 100-130 VAC or 208-240 VAC). The IceFree Eave Panel - 8″ requires 2 feet of heat cable per foot of panel. Designed with 11mm or 14mm heat cables.

Components

Roof Panel, Transition Metal, Drip Edge, and Zee Metal; 3″ Aluminum Alloy Snap Loc Top; 3″ Aluminum Alloy Base Panel

Optional Items

Ambient and/or Moisture Sensor Controllers; Self-regulating heat cable for gutters and downspouts

Electrical Requirements

N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.

Painted Aluminum Cladding

IceFree Eave Panels are available with a decorative metal cladding, which ensures an affordable finish that complements the style of any home. The Kynar 500 or Hylar 5000 cladding carries a 30-year warranty.
