ICEFREE DOUBLE VALLEY

IceFree Double Valley

IceFree Products That Work

Decorative icon

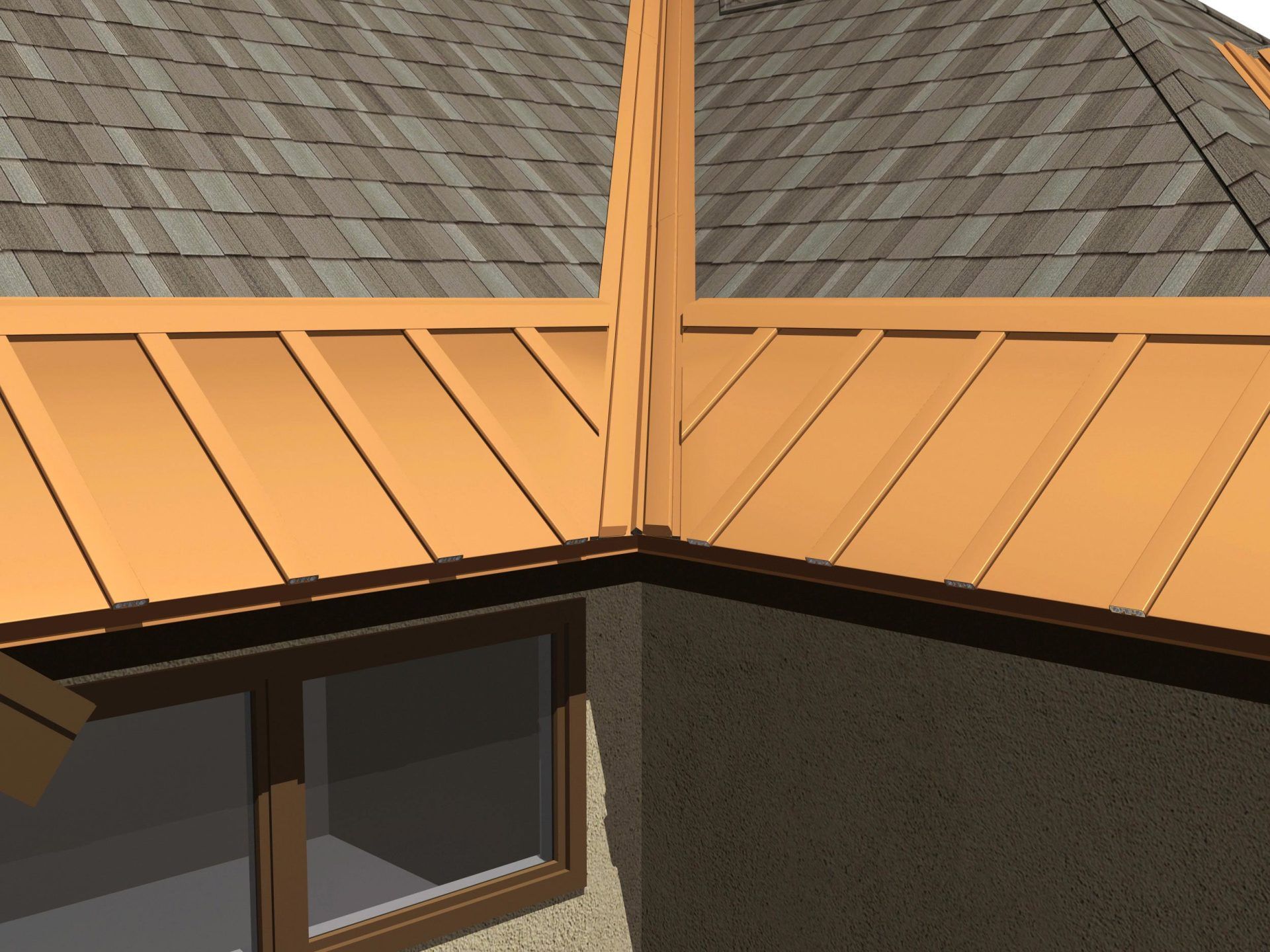

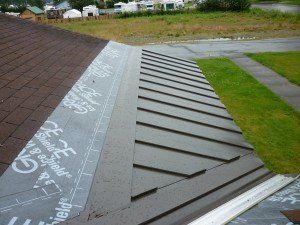

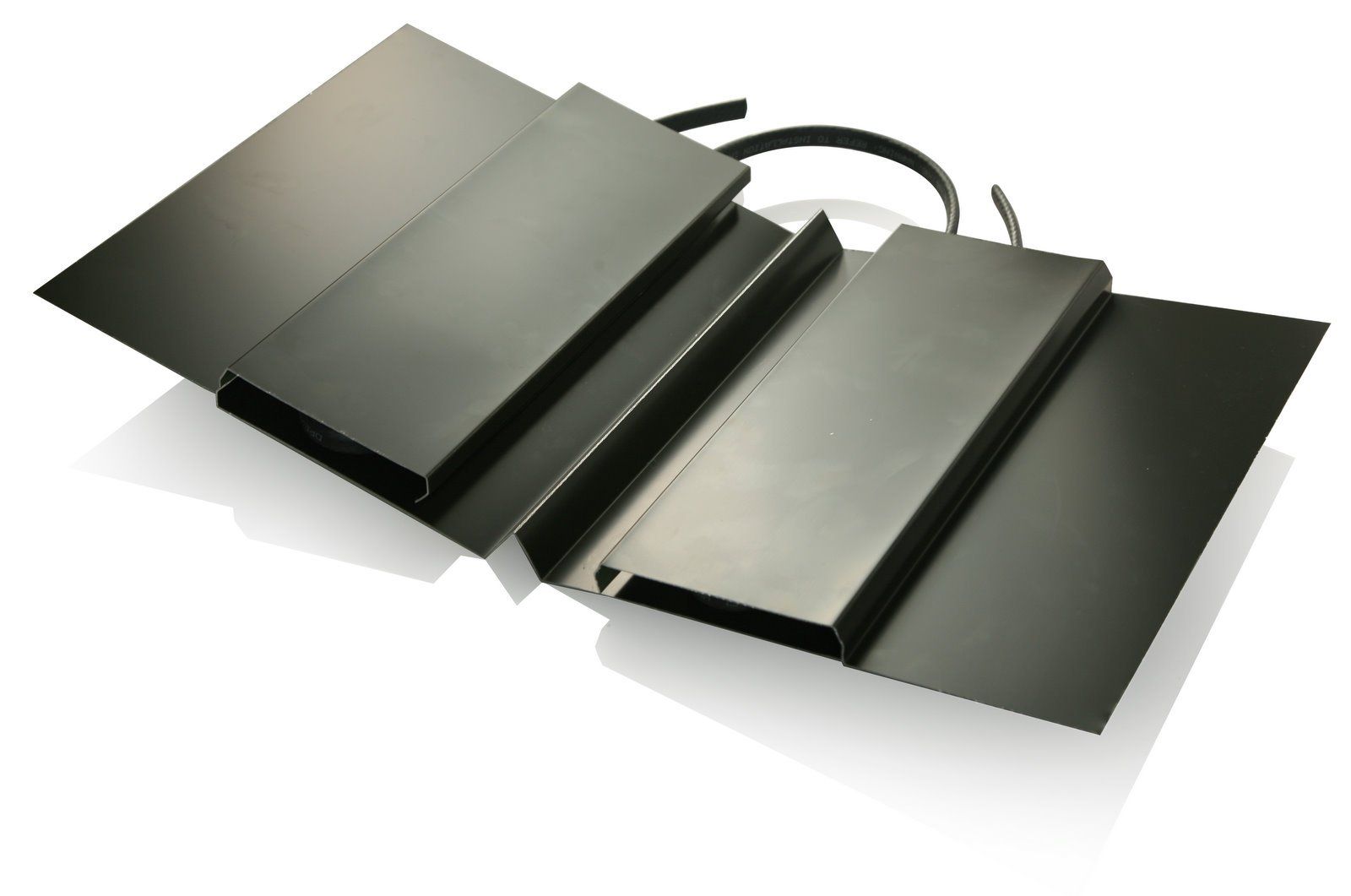

The IceFree Double Valley metal replaces standard “W” metal with metal flashed valleys. The double heated style is beneficial for withstanding major snowstorms and preventing ice dams from forming in the roof valleys. The roof valley itself can be heated for the entire length.

Each panel comes in a variety of colors as well as copper, aluminum and now CoreTen for a rustic metal look.
Specifications
Material Selection
UNA-CLAD Kynar 500 Painted Aluminum, 20 oz. Copper, Core-Ten and other specialty options are available

Color
Decorative Metal Cladding

Panel Size
Manufactured in 10 ft. lengths, cut to modify

Heating Systems
Commercial Grade-Self Regulating Heat Cable (min. 5 Watt per foot in 100-130 VAC or 208-240 VAC). The IceFree Eave Panel - 8″ requires 2 feet of heat cable per foot of panel. Designed with 11mm or 14mm heat cables

Components

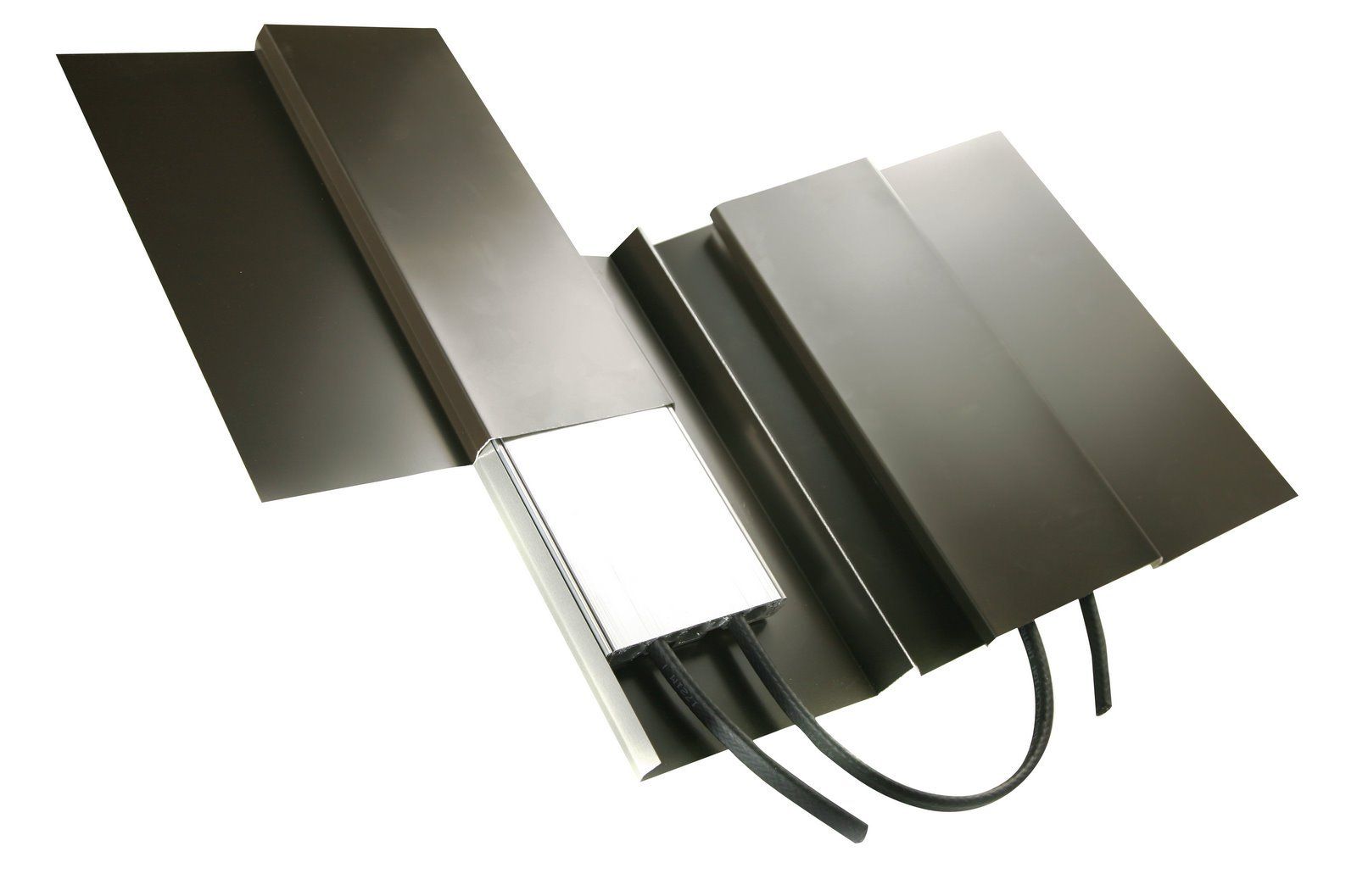

Custom “W” Metal, Transition Metal, 3″ Aluminum Alloy Extrusion

Optional Items
Ambient and/or Moisture Sensor Controllers; Self-regulating heat cable for gutters and downspouts

Electrical Requirements
N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.
Painted Aluminum Cladding
IceFree Eave Panels are available with a decorative metal cladding that is cost-effective and stylish. The Kynar 500 or Hylar 5000 cladding carries a 30-year warranty.
Roof Deicing Panels & Heated Roof Valley Panels Colors

Call Now to Order IceFree Double Valley Panels
(801) 872-8800
