Ice Dam Prevention for Your Home

This system is meant to be installed on the valley of your roof to eliminate snow and ice. The panel is approximately 3″ wide and is guaranteed to heat the entire length of the panel. The valley panel can be custom built to fit the length of your roof’s valley.

Title
Button
Title
Button
Title
Button

Title
Button

Title
Button
Title
Button
Title
Button

Specifications

IceFree Eave Panels & Heated Roof Valley Panels

Material Selection

Recycled Aluminum Alloy 6063, Temper – T5

Color

Decorative Metal Cladding, Copper, Zinc, CoreTen

Product Finish

Architectural Decorative Cover

Panel Size

(3"x 120" or 3"x 5' Panels) - The IceFree Valley Panel is designed to eliminate the build-up of ice within the roof valleys.

Heating Systems

Commercial Grade-Self Regulating Heat Cable (5, 8 or 12/12 Watt per foot in 100-130 VAC or 208-277 VAC) or 3/8" PEX Hydronic Radiant Tubing

Components

The IceFree Valley Panel Includes: Aluminum Alloy Snap Loc Top, Aluminum Alloy Base Panel

Optional Items

System controller, self-regulating heat cable for gutters and downspouts

Electrical Requirements

N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.

Benefits of a Heated Roof From Our IceFree Eave Panels

Prevent Roof Damage: Heated roof panels melt the ice and snow on your roof. There will be less damage on your roof if harsh conditions are not wreaking havoc on it.
Protect Your Family: If ice dams are left untreated, they can wreak havoc on your house. The water that backs up behind an ice dam can leak into your home, causing damage to your insulation, walls, ceilings, and other areas. Ensure that your family is dry and safe with our ice dam prevention panels.
Safety: If you have large icicles and ice chunks sitting on your roof, it is an accident waiting to happen. Icicles can fall off roofs when temperatures change and can injure a passerby. Prevent this from being a possibility with ice dam prevention and roof snow removal panels. If you have our IceFree Eave Panels installed, they stop ice from forming on your roof so no accidents happen.
Energy Efficient: There is no need to worry about a huge energy bill with our IceFree Eave Panels. Our ice dam prevention panels are some of the most energy-efficient deicing products on the market! Contact us today for ice dam prevention panel installation and more.

Direct Heat Transfer

Built to Be the Most Energy-Efficient

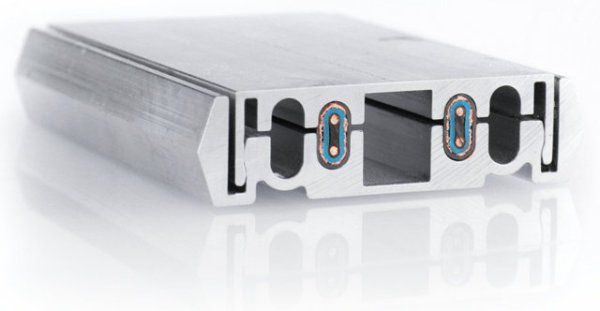

All of our products can incorporate different types of heat sources, such as 11-14mm self-regulating heat cable, mineral insulated cable and hydronic/radiant tubing. Engineered Roof Deicing's technically advanced aluminum alloy extrusions are manufactured with specifically sized heat cables.

Engineered Roof Deicing is proud to use 100% recycled aluminum.

COLOR SELECTION

IceFree Eave Panels are available with a decorative metal cladding, such as copper, zinc, CoreTen, or mill finish and .032 gauge aluminum flat sheet colors. The decorative metal cladding provides a cost-effective, attractive finish that will complement the look of your home.

IceFree Eave Panel Colors IceFree Zone System Colors

The silicone-modified polyester coatings on IceFree Zone Systems carry a 30-year warranty.
