Innovative IceFree Eave Panel Product

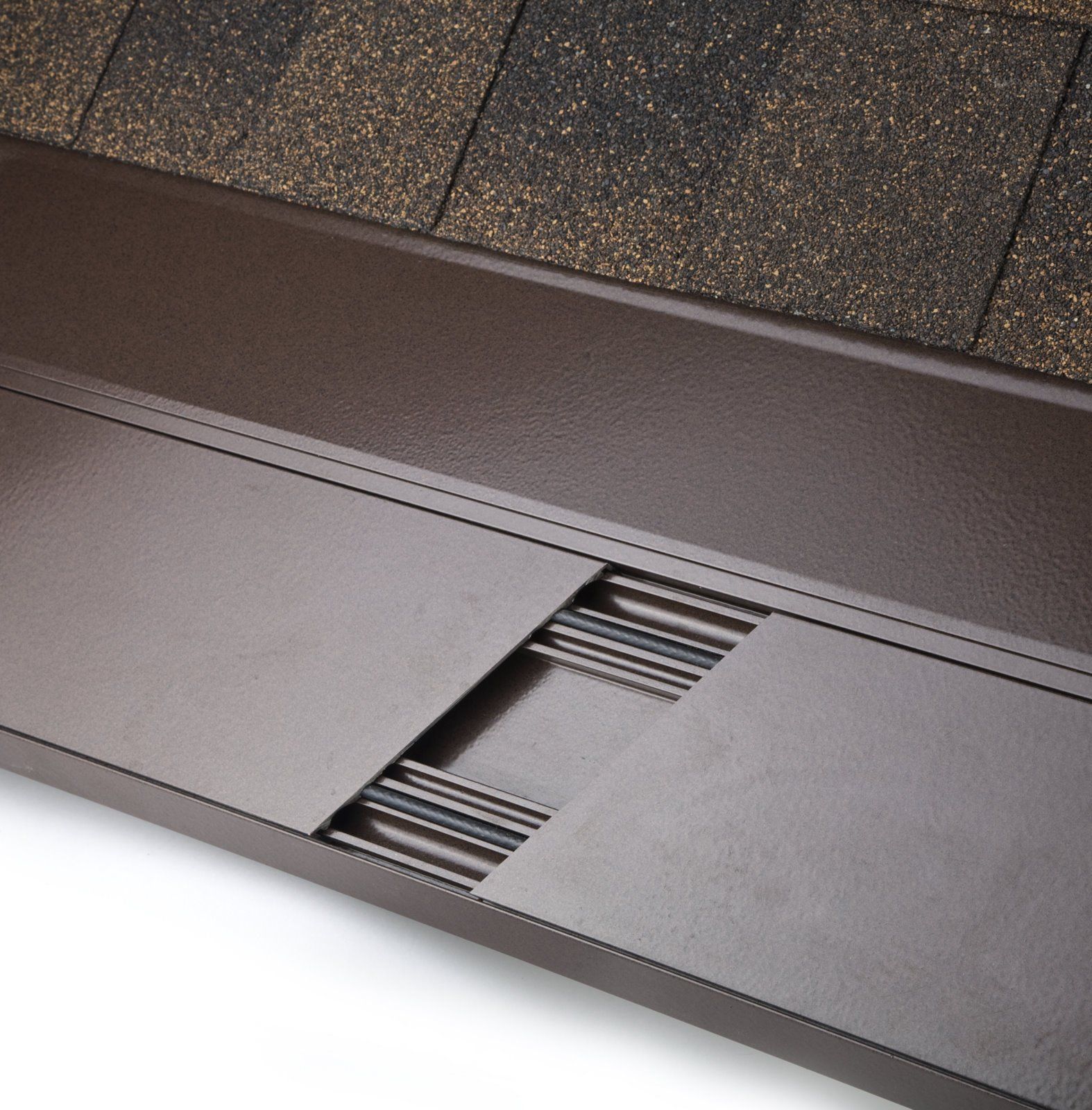

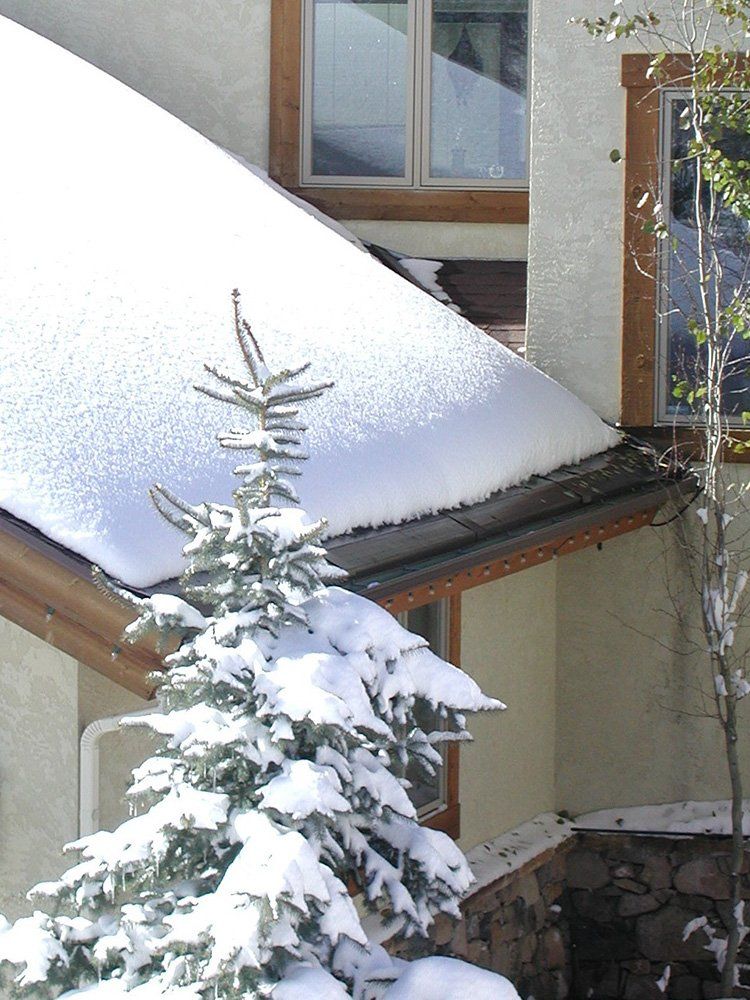

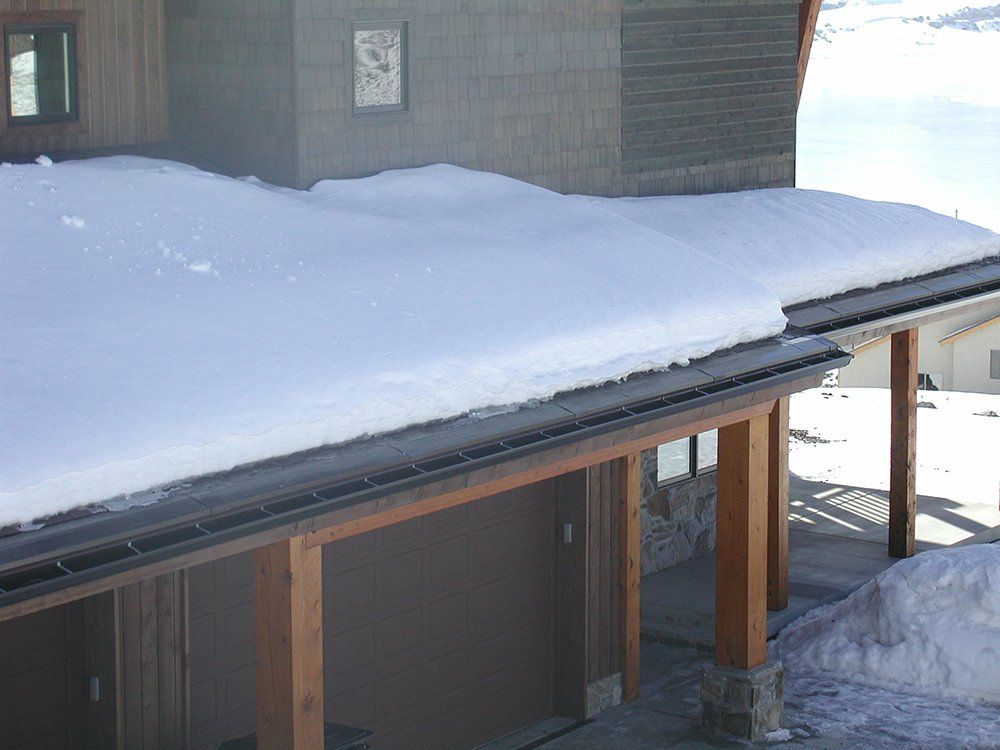

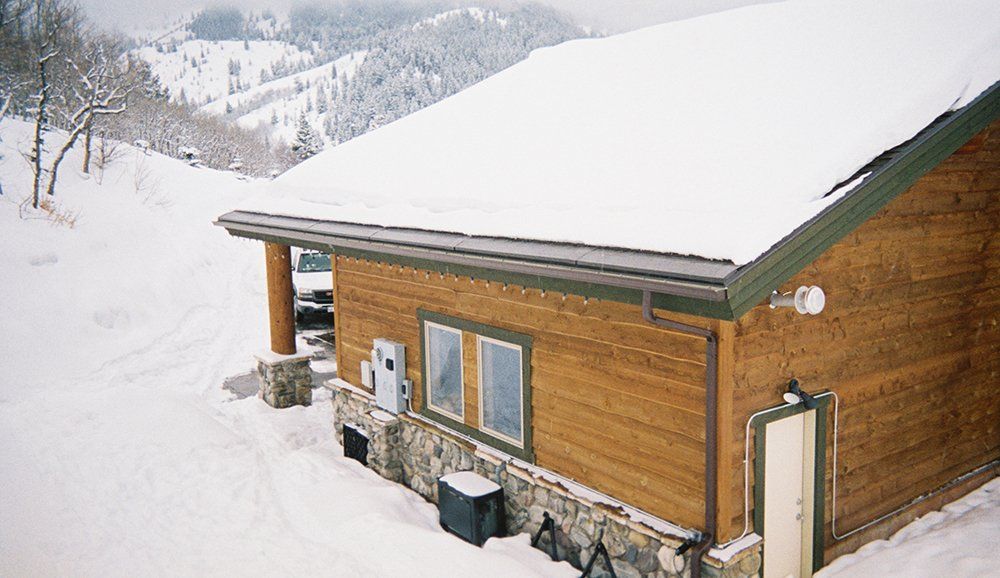

The IceFree Eave Panel 12″ is a patented extruded aluminum alloy system designed to be installed on the eave of your roof. It’s intended to eliminate ice and snow from the entire area of the panel. Each system can be installed on either new or existing roofs and the heating system is self-regulated, saving you time and money.

Each panel is finished with a decorative metal cladding that will best complement the colors of your home. We have many panel colors to choose from.

Title
Button
Title
Button
Title
Button

Title
Button

Title
Button
Title
Button
Title
Button

Specifications

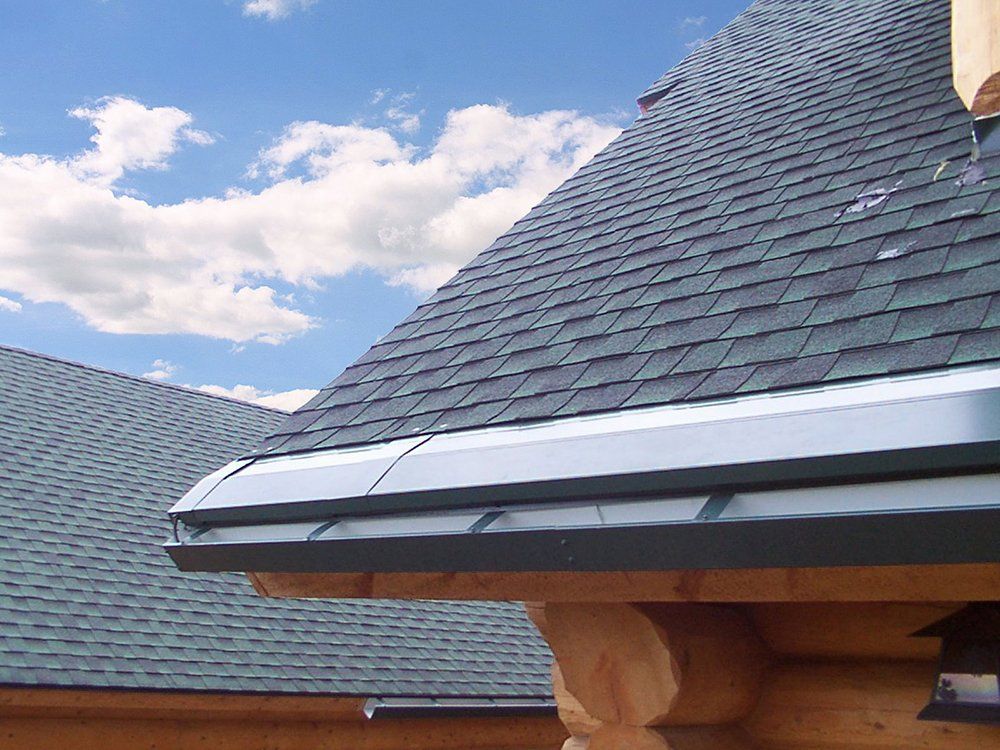

IceFree Eave Panels & Heated Roof Panels

Material Selection

Recycled Aluminum Alloy 6063, Temper – T5

Color

Spray Powder Coating

Product Finish

High-Grade Powder Coating or Architectural Decorative Cover

Panel Size

12″ x 5′ – Designed to eliminate icicles and ice dams on roof eaves up to 18″ wide

Heating Systems

Commercial Grade-Self Regulating Heat Cable (min. Min. 5 Watt per foot in 100-130 VAC or 208-240 VAC) or 3/8" PEX Hydronic Radiant Tubing

Components

6" Aluminum Alloy Snap-Loc Top; 6" Aluminum Alloy Eave Base Panel; 6" Aluminum Alloy Transition and Aluminum Expansion Joint Cap (EJC). Choose either 2' electric heat cable or 2' of hydroponic PEX tubing per foot.

Optional Items

System controller, self-regulating heat trace for gutters and downspouts

Electrical Requirements

N.E.C. 426-28 requires 30mA ground fault circuit protection for snow and ice melting applications.

Attention: The IceFree Eave Panels in 8", 12" and 18" are not available in California.

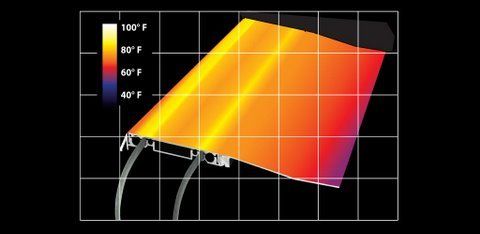

Direct Heat Transfer

Built to Be the Most Energy-Efficient

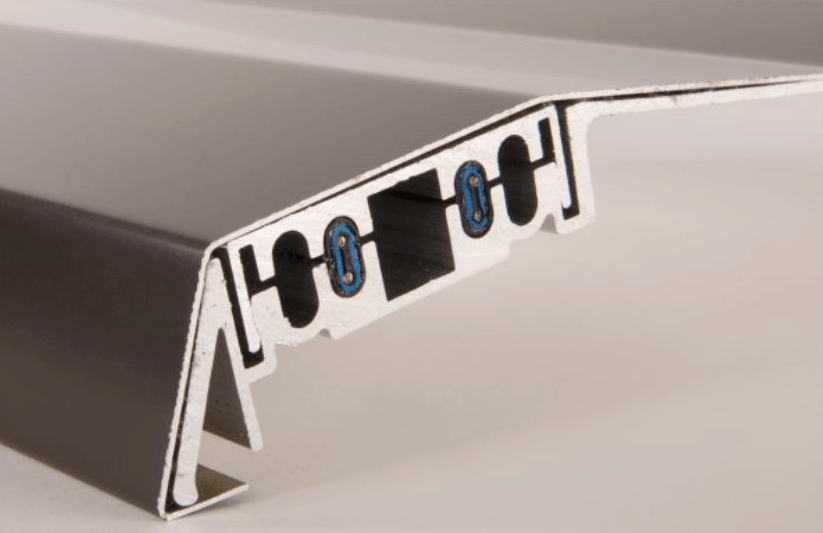

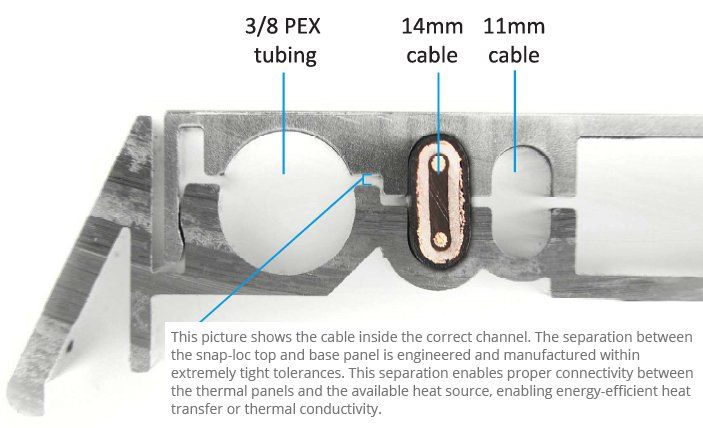

All of our products can incorporate different types of heat sources, such as 11-14mm self-regulating heat cable, mineral insulated cable and hydronic/radiant tubing. Engineered Roof Deicing's technically advanced aluminum alloy extrusions are manufactured with specifically sized heat cables.

Engineered Roof Deicing is proud to use 100% recycled aluminum.

COLOR SELECTION

IceFree Eave Panels are available with a decorative metal cladding, such as copper, zinc, CoreTen, or mill finish and .032 gauge aluminum flat sheet colors. The decorative metal cladding provides a cost-effective, attractive finish that will complement the look of your home.

IceFree Eave Panel Colors IceFree Zone System Colors

The silicone-modified polyester coatings on IceFree Zone Systems carry a 30-year warranty.
